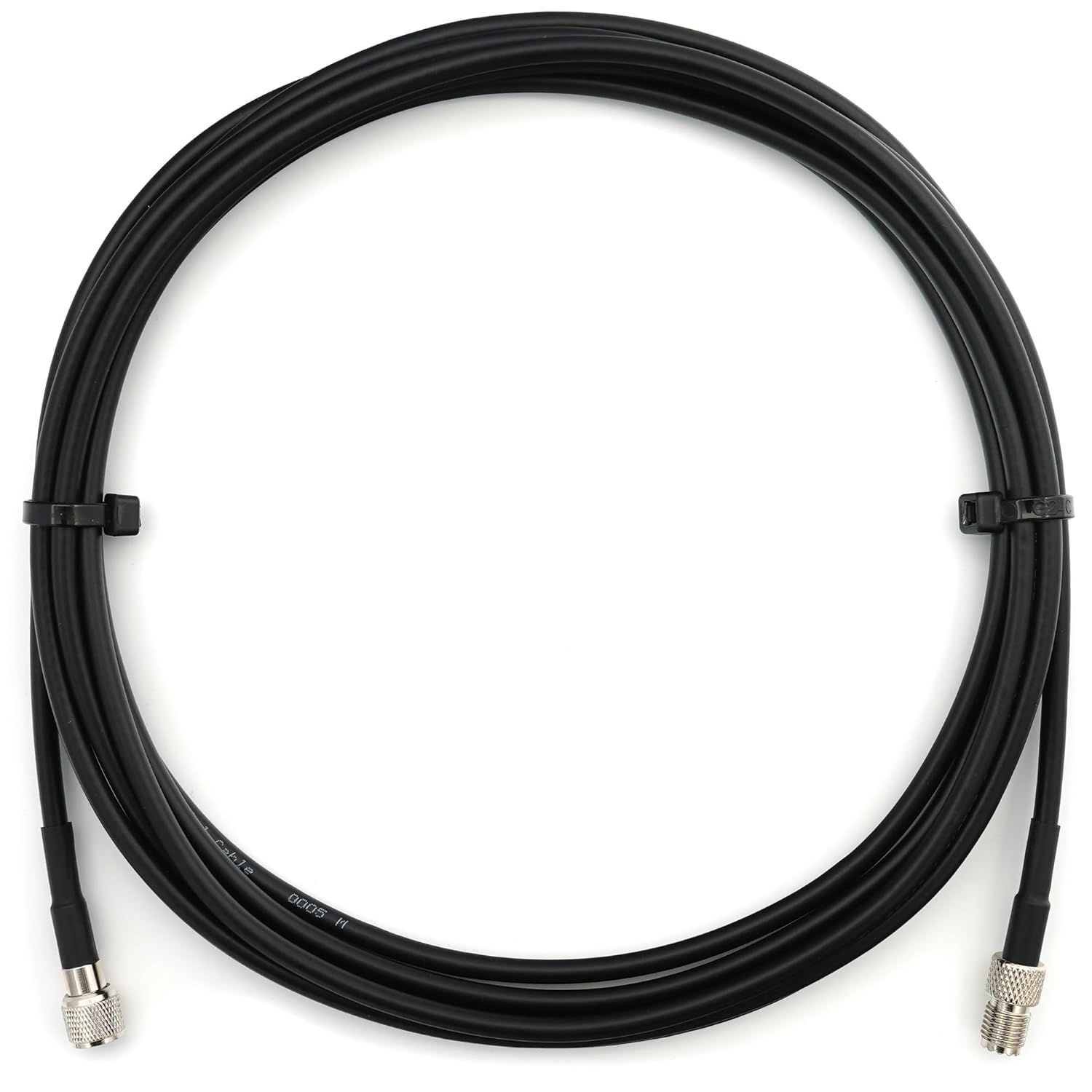

Mini UHF Male to Mini UHF Female CB Extension Cable 10m / 32.8ft Jumper Coax Low Loss RG58 RF Black Coaxial Aerial Cable

Mini UHF Male to Mini UHF Female Low Loss Semi-Flexible RG58/U Coaxial CableDouble Shielded with Black PVC JacketLength: 10 meters (32.8 ft)Features✅ Indoor/Outdoor use. Flexible UV-protected black PVC jacket. ✅ Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation. ✅ Double-wall shrink tubing with adhesive layer for better protection of connectors from moisture. ✅ Assembled in EU, fully tested and packed.SpecificationsCable Type: RG58/U Center Conductor Type: Solid Copper (1 Strand) Impedance: 50 Ohm Frequency Range: DC-6GHz Cutoff Frequency: 41 Ghz V.S.W.R: ≤ 2 Operating voltage: 1900Vrms Input Power (Peak): 2.5 KW Velocity of propagation: 80% Shielding Effectiveness: >90dB Capacitance: 83.33 pF/m Dielectric Type: PE Jacket Material: UV PVC No. of Shields: 2 (Aluminium foil + Tinned Copper Braid) Operating Temperature: -40 to +80 deg C Mechanical SpecificationsDiameter: 4.95mm Inner Conductor: 1.02mm Dielectric: 2.90mm Second Shield: 3.53mm Bending Radius: 50mm Attenuation dB/100m:150Mhz: 14.1 220Mhz: 17.1 450Mhz: 24.6 900Mhz: 35.1 1500Mhz: 43.9 1800Mhz: 52.5 2000Mhz: 55.5 2500Mhz: 62.3 5800Mhz: 92.5

• ✅【 Indoor/Outdoor use 】 Flexible Mini UHF Male / Female extension cable 10m UV-resistant, Waterproof and Frostproof with black PVC jacket.
• ✅【 Solid Copper Conductor 】 The 1.02mm copper conductor and tinned copper braid shield of RG58/U cable provide best-in-class data transmission with minimal attenuation.
• ✅【 Double-wall shrink tubing 】 Additional adhesive layer for better protection of connectors from external environment.
• ✅【 Assembled in EU 】 The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.
